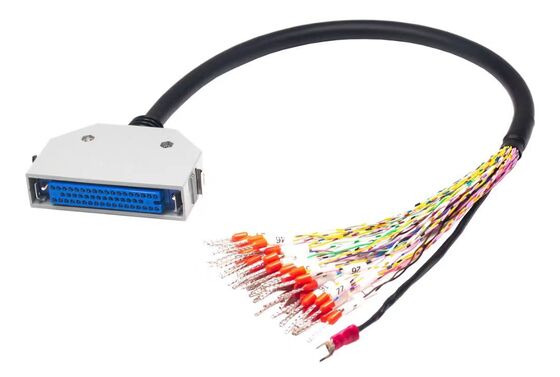

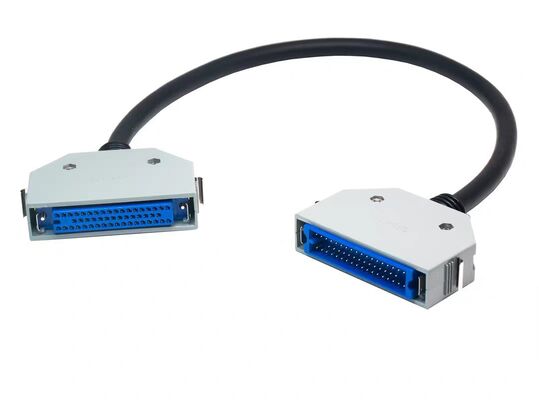

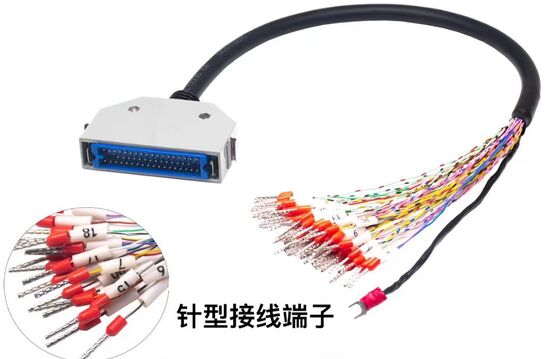

FX-50HD/Z K FANUC NAZHI Robotic Arm 50-Pin Adapter Cable with High Insulation Resistance and Wide Temperature Range

Product Description:

The Servo Motor Connectors are specifically designed to meet the demanding requirements of high-performance servo motor applications. These connectors are an essential component in establishing reliable and efficient connections for High Torque DC Servo Motor systems, ensuring optimal performance and durability. Engineered with precision, the Servo Motor Connectors support a range of configurations including 4PIN, 6PIN, 7PIN, 8PIN, 12PIN, and 17PIN, making them versatile for diverse industrial needs.

One of the standout features of these Servo Motor Connectors is their exceptional insulation resistance. Available in both 6PIN and 7PIN variants, the connectors offer superior protection against electrical leakage and interference, thereby enhancing the safety and reliability of the entire system. This high insulation resistance is crucial for maintaining stable operation in environments where electrical noise and fluctuations are common, such as in automated machinery powered by High Torque DC Servo Motors.

Operating temperature range is another critical factor for servo motor connectors, and these connectors excel in this aspect. They are capable of functioning efficiently within an extensive temperature range from -40℃ to +105℃. This wide operating temperature ensures that the connectors can withstand harsh conditions often encountered in industrial settings, including extreme cold or heat, without compromising performance or lifespan. This makes them ideal for use in applications involving DC Servo Motor Drives, where thermal stability is essential for consistent motor control and precision.

Contact plating plays a significant role in the performance and longevity of connectors. The Servo Motor Connectors are available with two high-quality plating options: Silver and Gold-plated pins. Silver-plated pins provide excellent conductivity and corrosion resistance, making them suitable for environments where signal integrity is paramount. On the other hand, Gold-plated pins offer superior resistance to oxidation and wear, ensuring long-term reliability even under frequent mating and unmating cycles. This flexibility in contact plating allows users to select the most appropriate option based on their specific application requirements.

The gender options for these connectors are comprehensive, including configurations with 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN. This broad range of gender and pin count options provides compatibility with a wide variety of servo motor models and control units, facilitating seamless integration into existing systems. Whether you are working with a compact DC Servo Motor Drive or a powerful High Torque DC Servo Motor, these connectors can accommodate your connection needs with ease.

In addition to their robust electrical and mechanical properties, the Servo Motor Connectors are designed for ease of installation and maintenance. Their ergonomic design ensures secure and stable connections, minimizing the risk of accidental disconnections or signal loss. This reliability is critical in applications where precise motor control is necessary, such as robotics, CNC machinery, and automated manufacturing lines driven by High Torque DC Servo Motors.

Overall, the Servo Motor Connectors represent a high-quality, dependable solution for connecting High Torque DC Servo Motors and their associated control systems. Their excellent insulation resistance, wide operating temperature range, premium contact plating options, and versatile gender and pin configurations make them an ideal choice for engineers and technicians seeking reliable connectivity in demanding servo motor applications. Whether you are designing new DC Servo Motor Drives or upgrading existing systems, these connectors offer the performance and durability required to achieve optimal motor control and efficiency.

Features:

• Product Name: Servo Motor Connectors
• Operating Temperature: -40℃ to +105℃
• Number of Contacts: 4PIN, 6PIN, 8PIN, 12PIN, 17PIN
• Contact Plating Options: Silver Pin, Gold Plated Pin
• Material: Durable Metal and Plastic Construction
• Gender Options: Available in 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN configurations
• Compatible with High Torque DC Servo Motor applications
• Ideal for DC Servo Motor Drive systems
• Suitable for AC Brushless Servo Motor connections

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are precision-engineered components designed to meet the demanding requirements of various servo motor applications. Manufactured in China and certified with CE and ISO9001, these connectors ensure high quality and reliability for professional use. They are ideal for use in Electro Hydraulic Servo systems, AC Servo Motor Drivers, and AC Servo Drives, providing robust and stable connections that guarantee optimal performance.

These connectors support a wide range of mounting options, including Panel Mount and Cable Mount types, making them versatile for integration into different mechanical and electrical setups. With options for 8pin, 4PIN, 6PIN, 12PIN, and 17PIN gender configurations, users can select the perfect connector to fit their specific servo motor control needs. The connectors feature a voltage rating of up to 1000V and offer excellent contact plating options, including Silver and Golded Pins, to ensure superior conductivity and resistance to corrosion.

Designed to operate reliably under extreme conditions, the NO MARK 6FX2003 connectors can withstand temperatures ranging from -40℃ to +105℃, making them suitable for harsh industrial environments. Their robust construction and high-quality materials make them excellent choices for Electro Hydraulic Servo systems, where precise control and dependable connectivity are critical to system performance.

These connectors are especially suited for applications involving AC Servo Motor Drivers and AC Servo Drives, where they facilitate secure and efficient signal transmission between the drive units and servo motors. Their design supports high-speed data transfer and power delivery, ensuring seamless operation in automated machinery, robotics, and manufacturing equipment.

NO MARK offers a minimum order quantity of 100 units, with a supply ability of 1000 pcs/day, ensuring timely availability for large-scale industrial projects. Products are carefully packed in carton boxes to protect against damage during transit. Customers can expect a swift delivery time of 1-3 working days, with flexible payment terms including T/T and PayPal to accommodate various purchasing preferences.

In summary, the NO MARK 6FX2003 Servo Motor Connectors are an excellent choice for professionals seeking durable, reliable, and versatile connectors for Electro Hydraulic Servo systems, AC Servo Motor Drivers, and AC Servo Drives. Their advanced features and certifications make them a trusted component in high-performance servo motor applications.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards of quality and performance. Manufactured in China under strict CE and ISO9001 certifications, these connectors ensure reliable and efficient operation for your Electro Hydraulic Servo and AC Servo Motor Driver applications.

We offer customization services to cater to your specific needs, including mounting types such as Panel Mount and Cable Mount. The connectors support various configurations with 6PIN and 7PIN insulation resistance options, suitable for different Electro Hydraulic Servo setups.

Our Servo Motor Connectors feature a current rating ranging from 1A to 10A and beyond, with contact plating options including Silver and Golded Pins to guarantee optimal conductivity and durability. Packaged securely in carton boxes, we ensure your order arrives safely and promptly.

With a minimum order quantity of 100 units and a supply ability of 1000 pieces per day, we can accommodate both small and large scale requirements. Delivery is swift, typically within 1-3 working days. Payment terms are flexible, accepting T/T and PayPal for your convenience.

Choose our customized Servo Motor Connectors for your Electro Hydraulic Servo and AC Servo Motor Driver systems to achieve superior performance and reliability.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor systems, ensuring optimal performance and durability in various industrial applications. The connectors feature high-quality materials and precision engineering to withstand harsh environments and high vibration conditions.

For technical support, we offer comprehensive assistance including installation guidance, troubleshooting tips, and compatibility information to help you integrate our connectors seamlessly into your servo motor setup. Our support team is knowledgeable in servo motor systems and connector specifications to address any technical queries you may have.

We also provide detailed product documentation, including datasheets, wiring diagrams, and application notes, to facilitate proper usage and maintenance. Replacement parts and accessories are available to ensure long-term serviceability of your servo motor connections.

In addition to support, we offer customized solutions to meet specific application requirements, including tailored connector configurations and cable assemblies. Our services aim to enhance your system’s reliability and efficiency, minimizing downtime and maintenance costs.

For ongoing service, we recommend regular inspection and cleaning of connectors to prevent contamination and wear. Our team can provide recommendations on maintenance schedules and best practices to extend the lifespan of your servo motor connectors.
